Gas Chlorinators

Chlorine is universally accepted for combating slime and algae better than any other chemical. The most impor tant aspect of chlorine usage is its economy and effectiveness in killing bio-organisms. Other uses of chlorine include control of H2S and Odor, fly control, sludge bulking and foaming control, ammonia oxidation, BOD reduction, disinfection

Description

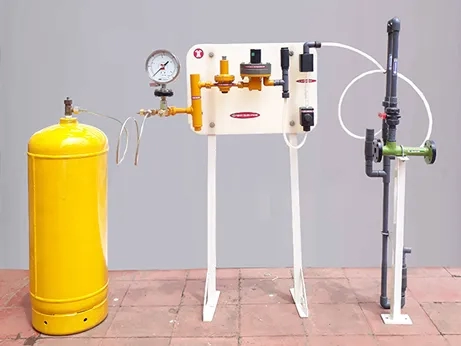

This is a Vacuum Operated Solution Feed Unit.

Designed to provide continuous and constant quantity of chlorine solution.
Capacity ranges from 100 Gms/hr to 250 Kgs/hr of chlorine.
Comes in both Automatic [Self-Propor tioning] and Manual Adjusted Design

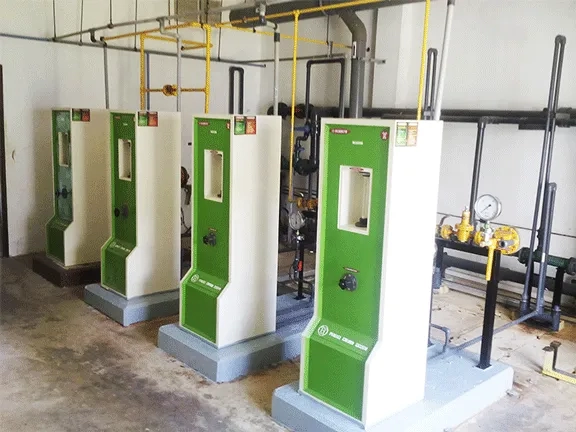

Comes in Wall Mounted, Frame Mounted and Floor/Pedestal Mounted Cabinet Models.

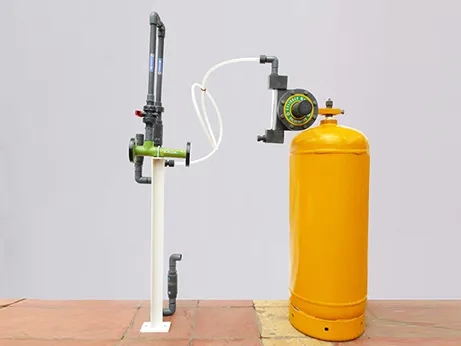

Also comes in Cylinder or Tonner Mounted Models of Three or Two Piece Integrated Construction.
Simple Design, Easy to Operate and Efficient Performance.
Compact, Reliable and Completely Safe.

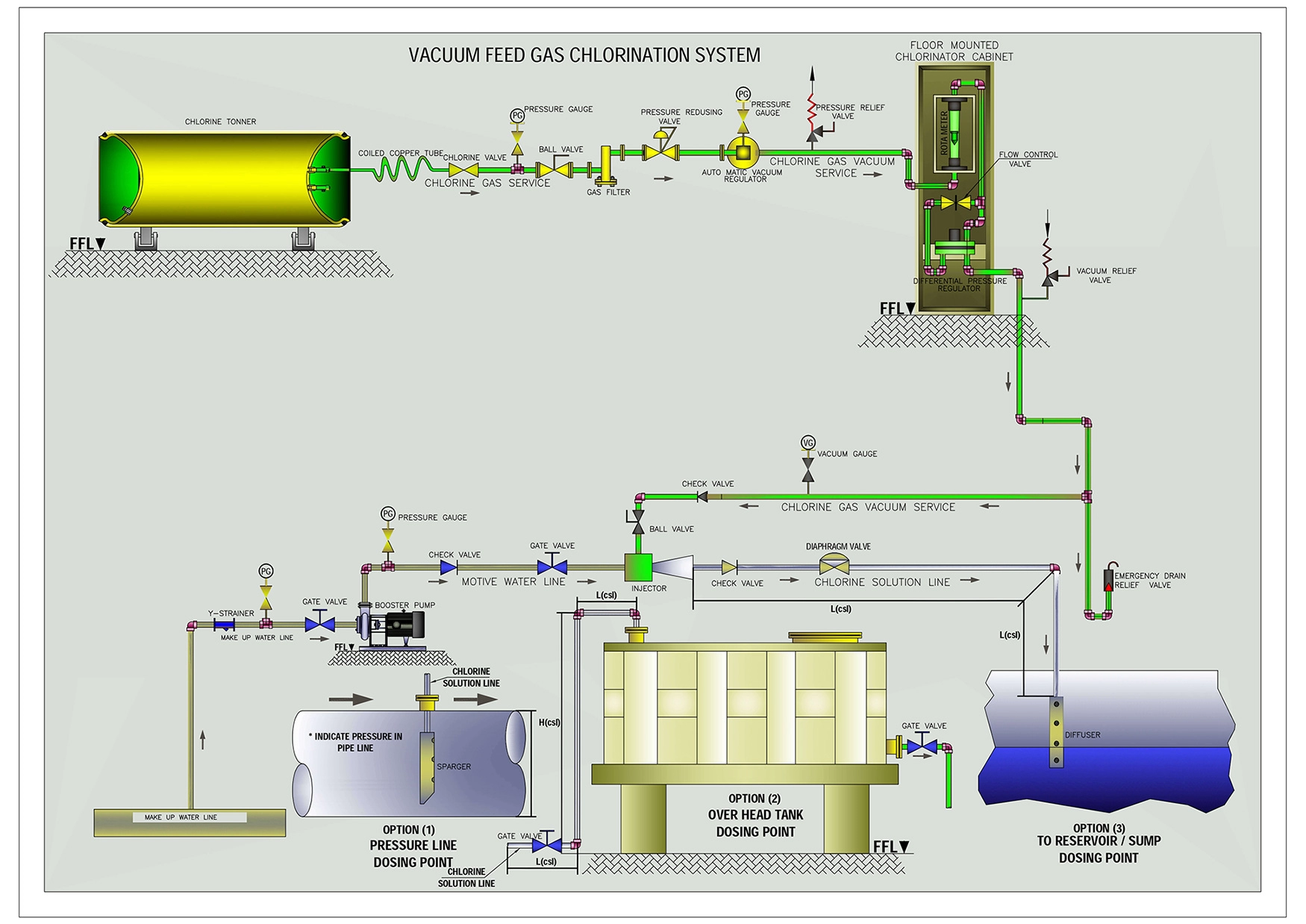

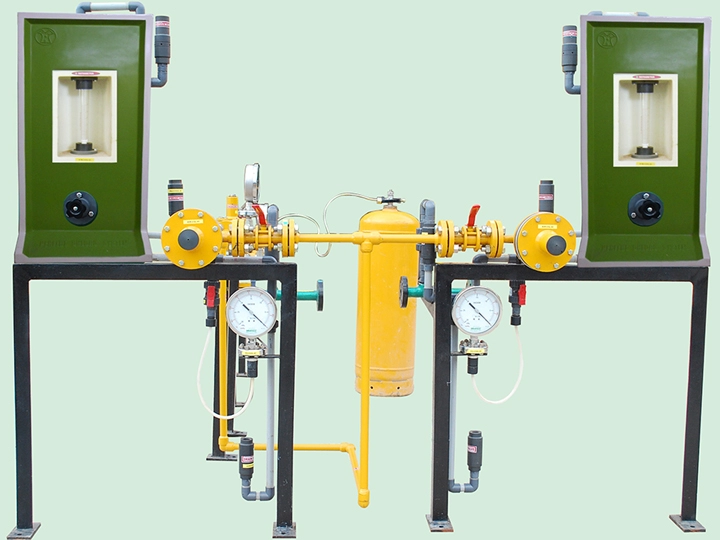

Vacuum Feed Gas Chlorinators — System Diagram

Principle of Operation

Motive Water ( water at high pressure) passes through the injector to pr oduce v acuum. T his v acuum extends upto A utomatic Vacuum Regulator (AVR). The chlorine gas supplied [from Tonners / Cylinders or Chlorine Evaporators] under pressure is reduced to a lower pressure by Pressure Reducing Valve [PRV] and to a constant vacuum at the AVR. The gas under vacuum passes through a Gas Flowmeter or Rotameter and Flow Control Valve [FCV]. A Differential Pressure Regulator [DPR] is provided for Chlorinator s above 6 Kgs/hr capacity, to control the pressure drop across the Flow meter and also to ensure accurate and steady flow of gas. The chlorine gas then gets mixed with the water at the injector and is then discharged to the point of application. Safety Valves like Check Valve, Emergency Drain Valve, Pressure Relief Valve and Vacuum Relief Valve are provided in this System to make it safe for both Operating Personnel and Equipment's longevity.
We can also provide additional accessories in Chlorine Gas Pipeline, if required, like Pressure Relief Valves, Rupture Disc, Pressure Switches, Shut-off Valve, Pressure Reducing Valve, Gas filter, Flow Control Valves, Flow meter, Pressure Gauges, Non Return Valves, Chlorine Gas Supply Pipeline System, Vent Pipeline, Chlorine Scrubbers, Chlorinators etc. This Evaporator is designed for reliability, safety and very little maintenance. This Evaporator can be made fully automatic or partially automatic depending upon the level of automation and sophistication required by the Client.. The same arrangement with suitable materials of construction is used for Ammonia, Sulphur-dioxide vaporization.

System Components

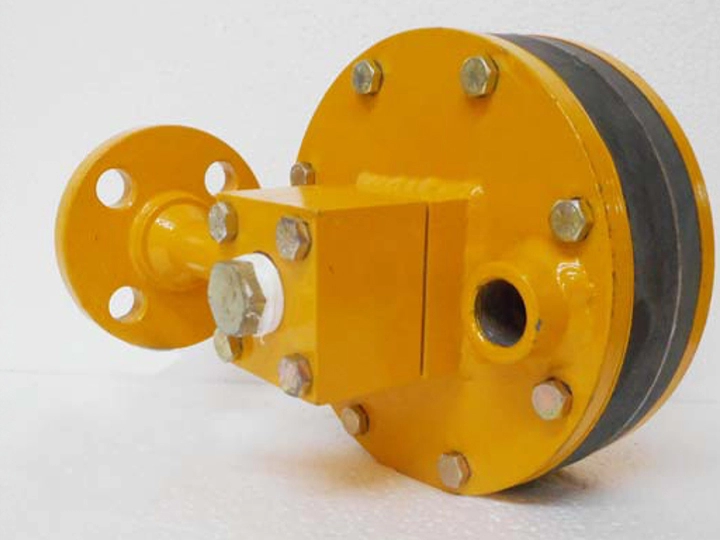

Automatic Vacuum Regulator

Normally closed and opens only w hen there is vacuum, thus regulating the flow of chlorine gas in a controlled manner.

Exclusive design ensures minimal risk of handling chlorine gas under pressure.

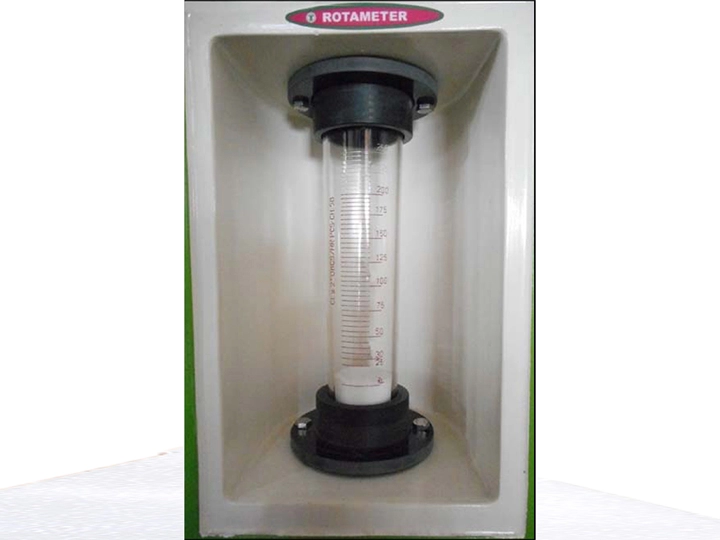

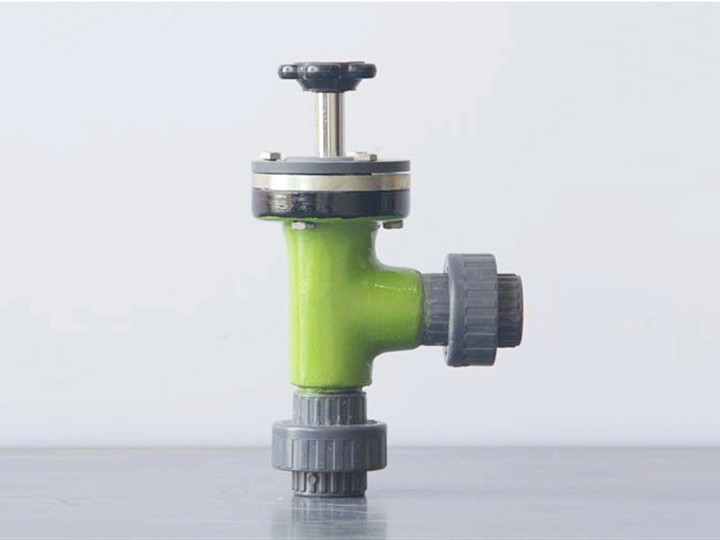

Flow Meter

Indicates directly the flow of Chlorine gas in terms of Grams/ Kilograms/ Pounds consumed per hour.

Made of Borosilicate glass and calibrated for 0.1, 0.2, 0.5, 1, 2, 3, 5, 6 10, 15, 20, 25, 30, 40, 50, 75, 90, 110,150, 200, 250 kgs/hr.
Accuracy is Â± 4% of indicated flow. Flow can be adjusted by a specially designed Flow Control Valve allied with the Flow meter.

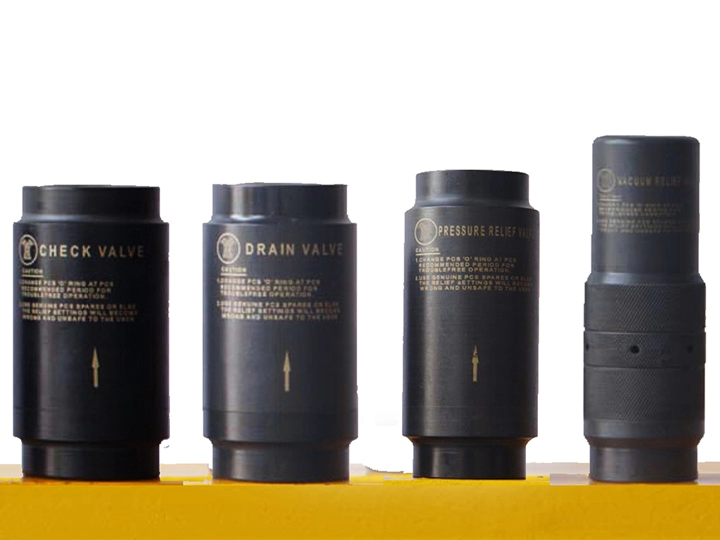

Safety Valves

The system is provided with Pressure Relief Valve, Vacuum Relief.Valve, Check Valve and Emergency Drain Relief Valve.

Valve, Check Valve and Emergency Drain Relief Valve.

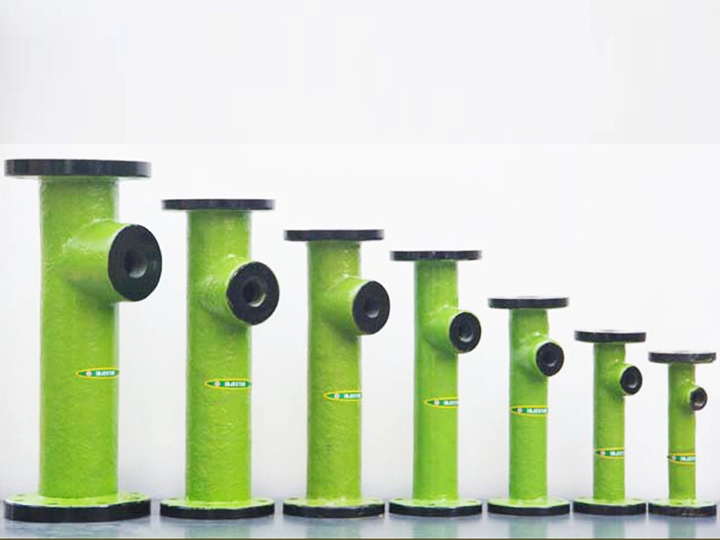

Injector

Comes in Fixed-throat and Variable-throat types.

Variable orifices can be provided along with throttle v alve for capacities above 50 Kgs/hr thereby reducing water consumption to a minimum
Made of PVC-FRP/ Cast Iron Rubber Lined/ Mild Steel Rubberlined.

Description

This is a Vacuum Operated Solution Feed Unit.

Ensures continuous and constant quantity of chlorine solution by using a packed Absorption Tower.
Capacity normally ranges from 200 Gms/hr to 40 Kgs/hr of Chlorine. [Higher capacities can also be provided on request].
Simple design, very easy to operate and maintain.
Fewer spares, less operating costs.

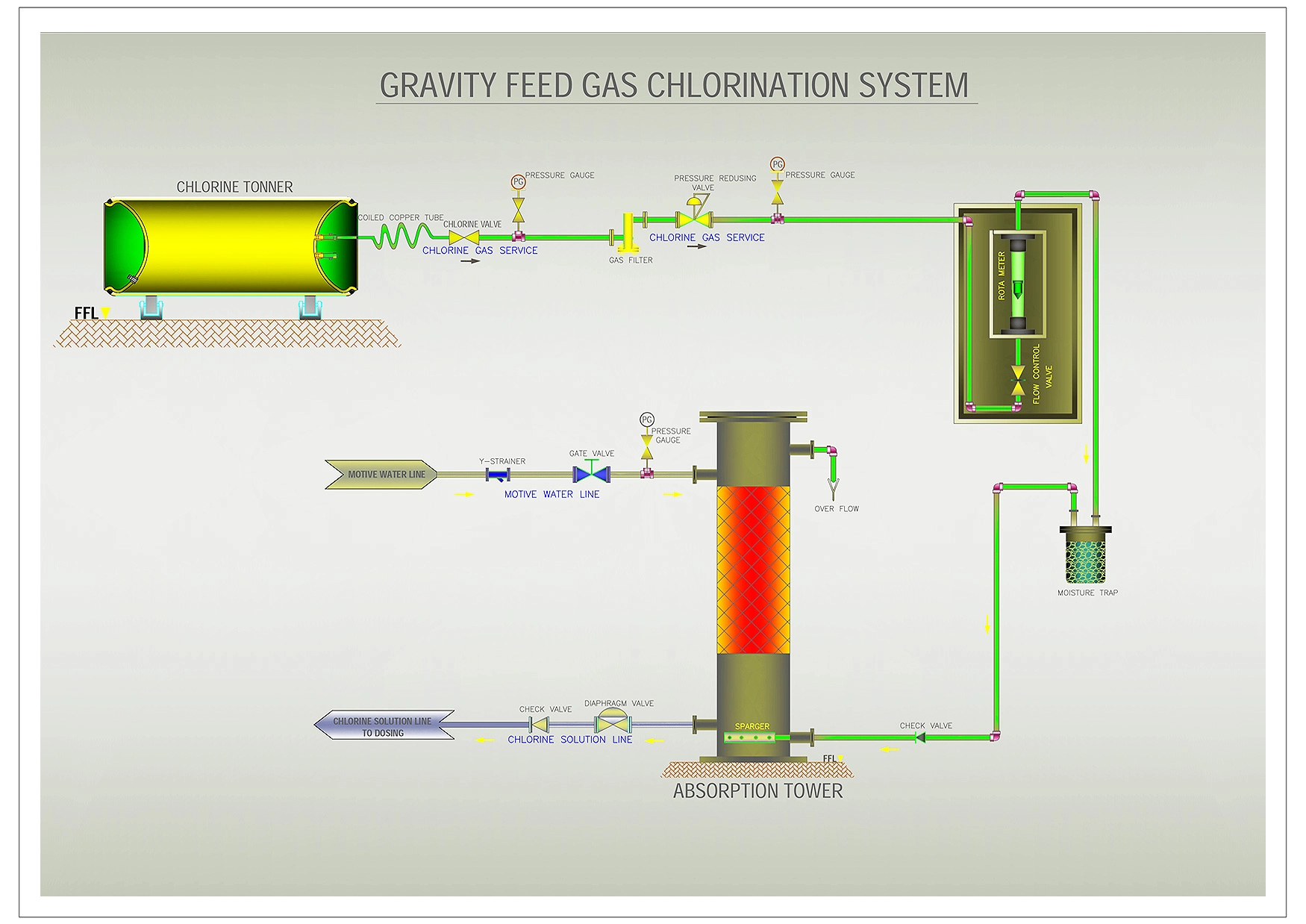

Gravity Feed Gas Chlorinators — System Diagram

Principle of Operation

Chlorine Gas from Cylinder s/Tonner s at regulated pressure passes through a Flow Control Valve, Rotameter/Flowmeter, Moisture-Trap and Check Valve to a Packed Absorption Tower where it gets uniformly mixed with the incoming water. The chlorine solution is then discharged to the point of application [normally discharged into a sump or reservoir at an elevation below the Absorption Tower only]. The Flow meter directly indicates the amount of chlorine consumed. It is very important that the required water flow to the Absorption Tower, should be constant and continuous at the time of operation for safety reasons.

System Components

Flow Meter

Indicates directly the flow of Chlorine gas in terms of Grams/ Kilograms/ Pounds consumed per hour.

Made of Borosilicate glass and calibrated for 0.2, 0.5, 1, 2, 3, 5, 6 10, 15, 20, 25, 30, 40 kgs/hr of chlorine gas.
Flow can adjusted by a specially designed Flow Control Valve allied with the Flow meter.

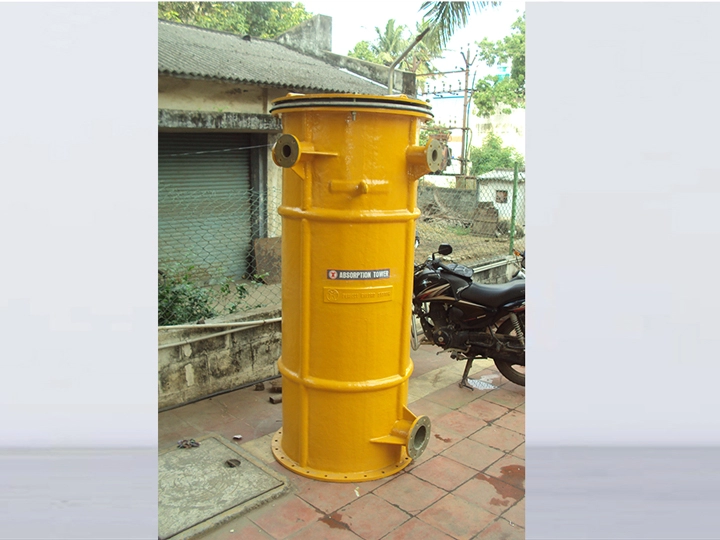

Absorption Tower

Comes in both Co-Current and Counter Current Types Design 3000 parts of chlorine dissolves in one litre of water. Our design consideration is dissolution of 1500 parts of Chlorine in one litre of water.

Chlorine gas is released inside the packed [PVC/PP Rashig rings] Absorption Tower with high velocity with 360Â°+ 90Â° turn ensuring a uniform and complete mixing.
A â€œCompensating-Headâ€ is provided to avoid Back-surge during pressure drop of Chlorine gas.
