Chlorine has many diversified uses including water treatment and many other technical processes. However, Chlorine Gas is highly hazardous and virulent in nature. So, exceptional precaution is to be taken in areas where chlorine is stored and handled.
If Plant Personnel are exposed to even low concentrations of chlorine gas for an extended period, it poses grave health hazard. Also, chlorine corrodes costly plant machinery resulting in wastage of time and money. Chlorine leak never gets arrested by itself, it only gets worse if not properly corrected and in time.
Chlorine Emergency Kit has been designed by our experienced team of Engineers to hold back / arrest most of the leaks arising from storing and handling of a Chlorine Container.
| S.No | Name of Item | Name of Item | Cylinder Kit A | Tonner Kit B |
|---|---|---|---|---|
| Device 1 for Valve leaks | ||||
| 01 | Base Bar Assembly | 1 No | - | |
| 02 | Hood | 1 No | 1 No | |
| 03 | Hood Vent Value | 1 No | 1 No | |
| 04 | Hood Tightening Bolt | 1 No | 1 No | |
| 05 | Chains | 3 Nos | - | |
| 06 | Yoke for Chains | 1 No | - | |
| 07 | Gasket for Hood | 1 No | 1 No | |
| 08 | Front Bar | - | 1 No | |
| 09 | Back Bar | - | 1 No | |
| 10 | Tie Rods | - | 4 Nos | |
| 11 | Tie Rod Connectors | - | 2 Nos | |
| 12 | Saddle Chain | - | 2 Nos | |
| 13 | Tie Rod End Nut | - | 1 No | |
| Device 2 for Fusible Plug Leaks | ||||
| 14 | Hood(small) | - | 1 No | |
| 15 | Gasket for Small Hood | - | 1 No | |
| 16 | Yoke for Plug | - | 1 No | |
| 17 | Gasket for Cap Nut | - | 1 No | |
| 18 | GStud on Yoke | - | 1 No | |
| 19 | Cap Nut | - | 1 No | |
| Device 3 for Body Leaks | ||||
| 20 | Chain for Body | 1 No | 1 No | |
| 21 | Yoke | - | 1 No | |
| 22 | Yoke with Base for Body | 1 No | 1 No | |
| 23 | Yoke Tightening Bolt | 1 No | 1 No | |
| 24 | Ruber Patch for Base | 3 Nos | - | |
| 25 | Base for Body | - | 1 No | |
| Additional Items | ||||
| 26 | Wooden Drift Pin (1 Big & 1 Small)2 Nos | 2 Nos | - | |
| 27 | Steel Drift Pin (1 Big & 1 Small) | 2 Sets | 2 Sets | |
| 28 | Hammer | 1 No | 1 No | |
| 29 | Valve Cap Nut | 1 No | 1 No | |
| 30 | Set of tools - (Spanners 10-11,30-32, ½†x 3/8†/ scraper) | 1 Set | 1 Set | |
| 31 | Spare Gasket | 1 Set | 1 Set | |
| 32 | Flexible Copper Connector | 1 No | 1 No | |
| 33 | Valve Yoke | 1 No | 1 No | |
| 34 | Chlorine Cylinder Valve Key (IS : 3224) | 1 No | 1 No | |
| 35 | Complete PVC Protective Clothing | 1 Set | 1 Set | |
| 36 | Gas Mask Cannister type | 1 No | 1 No | |
| 37 | Instruction Manual | 1 No | 1 No | |
| 38 | Steel Box | 1 No | 1 No | |

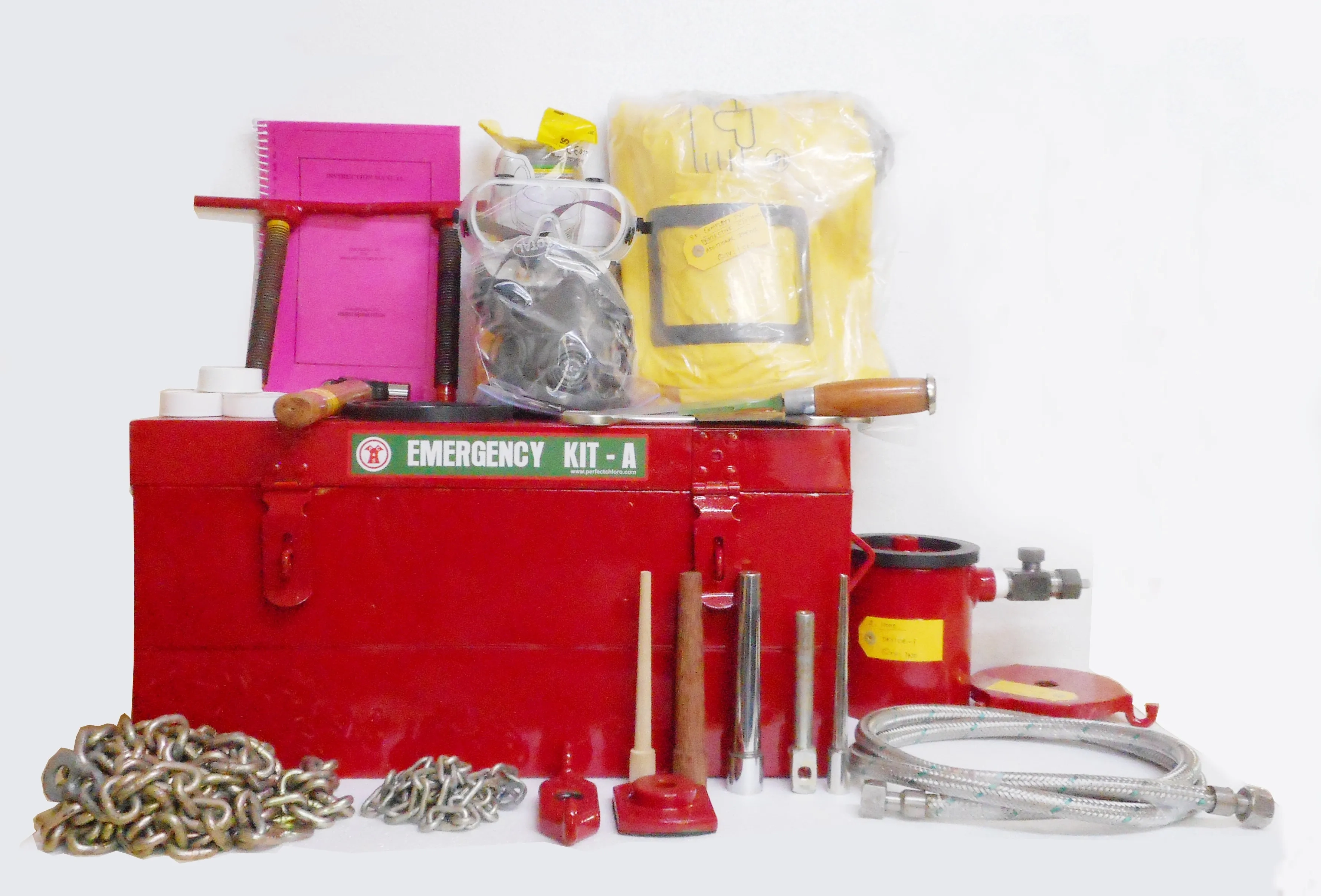

The potential leak areas in a Cylinder [ capacity of around 85 kgs/100 Kgs ] are
This Emergency Kit 'A' has the tools and fixtures to hold back / arrest leaks in these potential areas.

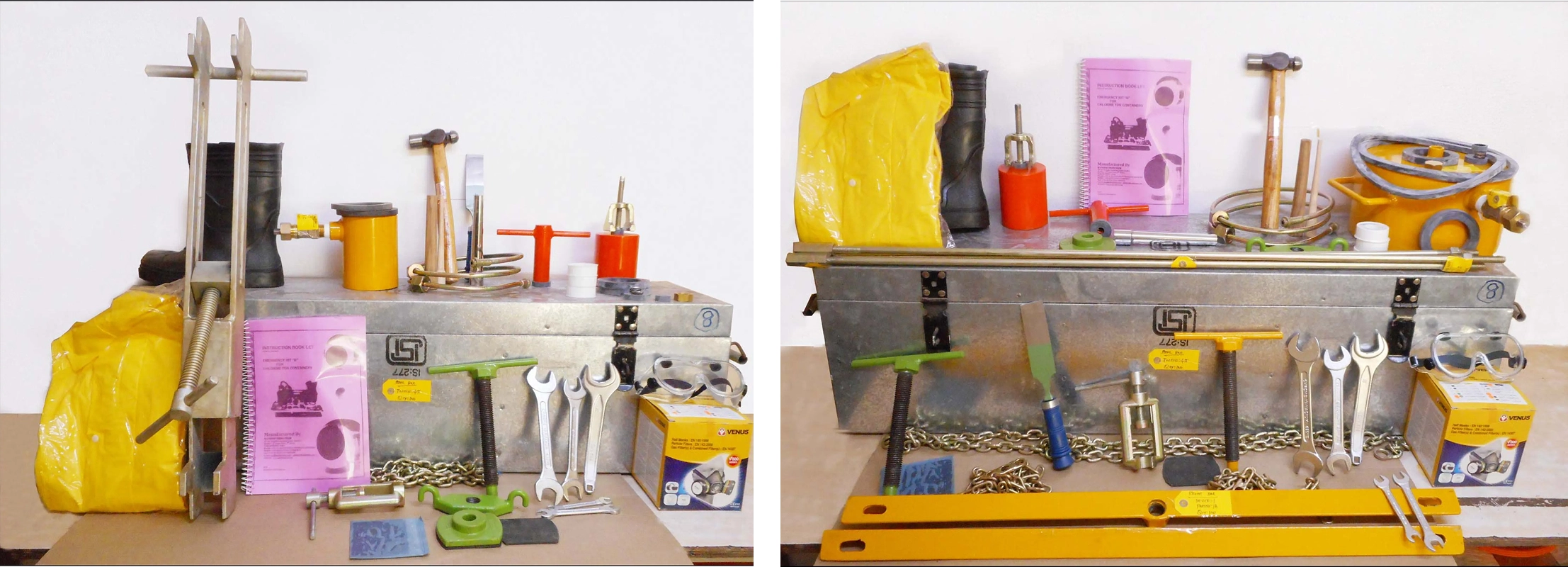

The potential leak areas in a Ton Container [or Tonner with capacity of around 930kgs] are
This Emergency Kit 'B' has the tools and fixtures to hold back/arrest leaks in these potential areas.
Easy to handle tools and fixtures enable the users to stop/handle dangerous leaks in the shortest possible time. Moreover, clear Instruction Manual is provided with each Kit, to guide the user with step by step procedures in handling these tools and fixtures in arresting/containing the leak.
This is a very simple, user-friendly life saving kit and is a must in area where Chlorine container is used.
Easy to handle tools and fixtures enable the users to stop/handle dangerous leaks in the shortest possible time. Moreover, clear Instruction Manual is provided with each Kit, to guide the user with step by step procedures in handling these tools and fixtures in arresting/containing the leak.
This is a very simple, user-friendly life saving kit and is a must in area where Chlorine container is used.
Precaution
Please note that during gas leaks, Emergency Kits should be used by trained Personnel wearing fully working, Self Contained Air Breathing Apparatus.
Regular Mock-Drills on handling Tonner /Cylinder leaks should be provided to all Operation/Maintenance Personnel, so that everyone is well trained in handling Tonner / Cylinder Leak Emergencies.
Sailent Features
Separate Emergency Kits have to be used for Chlorine Cylinders of around 85 kgs or 100 kgs and Chlorine Ton Containers of around 1000 Kgs capacity.
